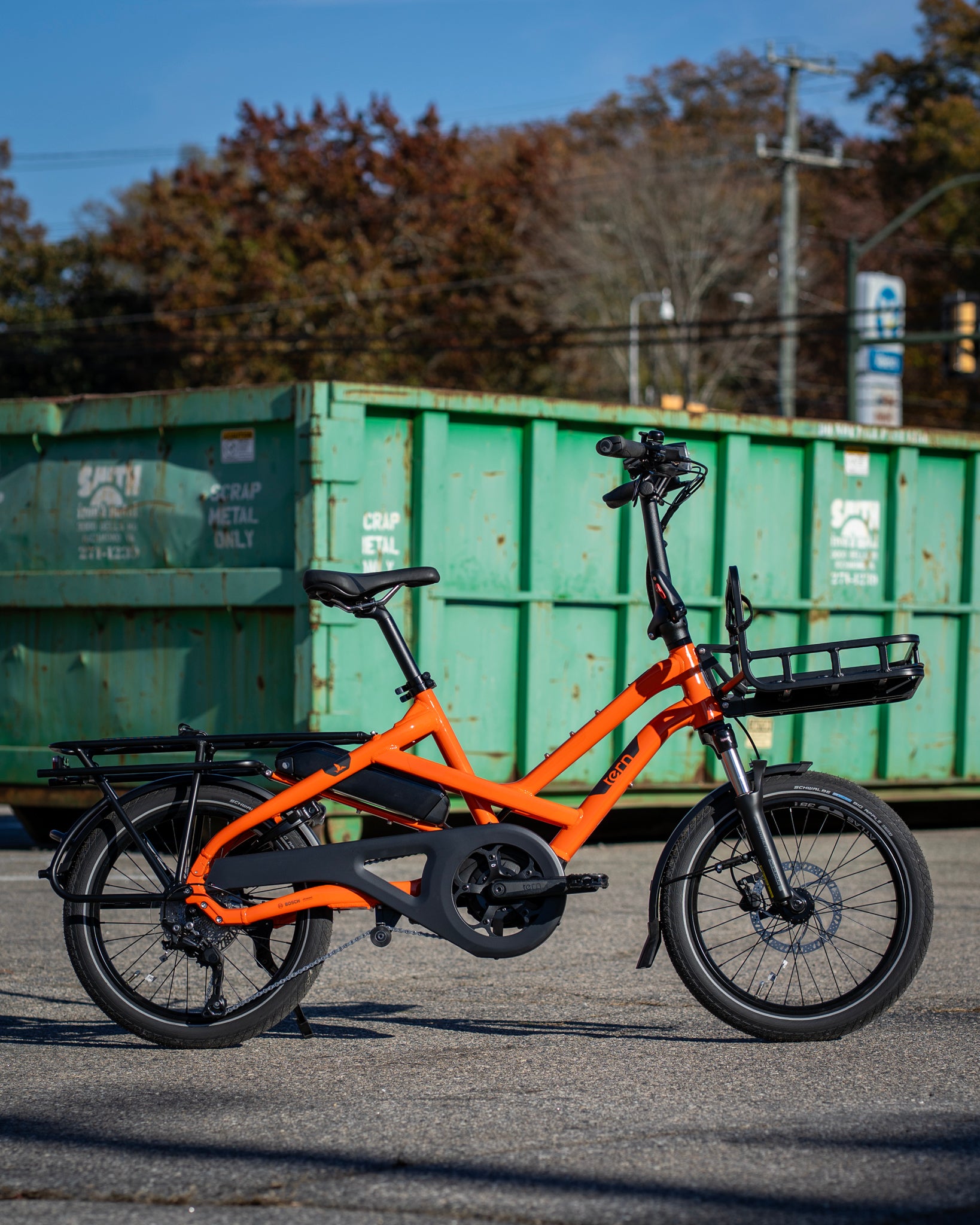

tern pedale Tern HSD P10 – Outpost Richmond

tern pedale Tern HSD P10 – Outpost RichmondMighty But Mini The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best in class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike. What makes it a P10?

Mighty But Mini

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.

What makes it a P10?

Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
Detachable and easy-to-understand Intuvia 100 display
1x10-speed Shimano Deore groupset with trigger shifter

HSD Highlights

Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight.

Specs.

General Info
Speeds:
1 x 10
Weight:
27.6 kg (60.8 lb)
Gear Inches:
30 - 97" (2.36 - 7.72 m)
Folding Size:
165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
Folding Time:
5 seconds
Frame Sizes:
One size
Distance: Seatpost to Handlebar:
54.5 - 62.5 cm (21.5 - 24.6 in)
Distance: Saddle to Pedal:
70 - 102.5 cm (27.6 - 40.4 in)
Suggested Rider Height:
150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight:
180 kg (396.8 lb)
Max Rider Weight:
120 kg (264.6 lb)

Frame
Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern Upright by Velo
Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp: Tern Collar

Brakes
Front Brake: Tektro, hydraulic disc, 180 mm rotor
Rear Brake: Tektro, hydraulic disc, 160 mm rotor
Brake Levers: Tektro, hydraulic disc
Brake Cable & Housing: Tektro, hydraulic disc

Wheels
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, wide 35 mm
Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission
Shifter(s): Shimano Deore, 1 x 10 spd, trigger
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern HSD custom
Cassette/Freewheel: Shimano 11-36T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals: Urban with non-slip surface
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules

E-System
Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 545
Display: Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Lock & Alarm: Optional
Range: 545 Wh: 51-121 km (32-76 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans H-Trace, for eBike
Fenders: SKS, stainless hardware
Rack(s): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
Frame Lock: ABUS, keyed-alike with Bosch battery
